LX系列
像素间距(mm)：1.56/1.95/2.27/2.6/2.97/3.91/4.81
LA系列LED显示屏是我司针对舞台场景开发的新产品。该产品具有重量轻、平整度高、安装维修方便等优点。
像素间距：
1.95mm/2.61mm/2.97mm/3.91mm/4.81mm/5.9mm亮度：
800~1,200nits(室内)/4,000~5,000nits(户外)箱体尺寸：
500x500x68mm/500x1,000x68mm

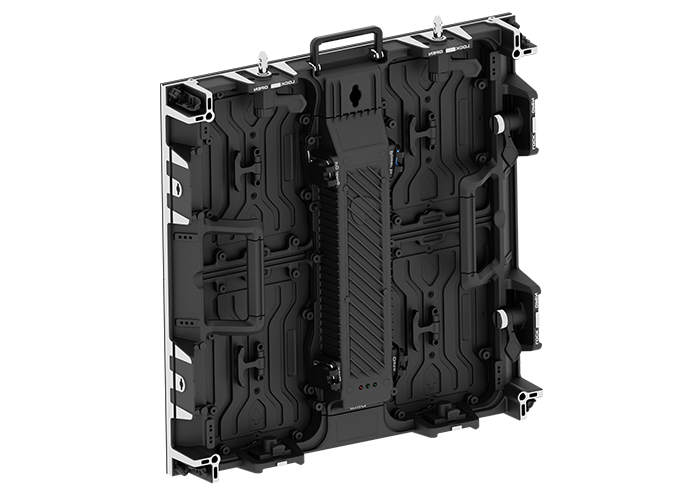

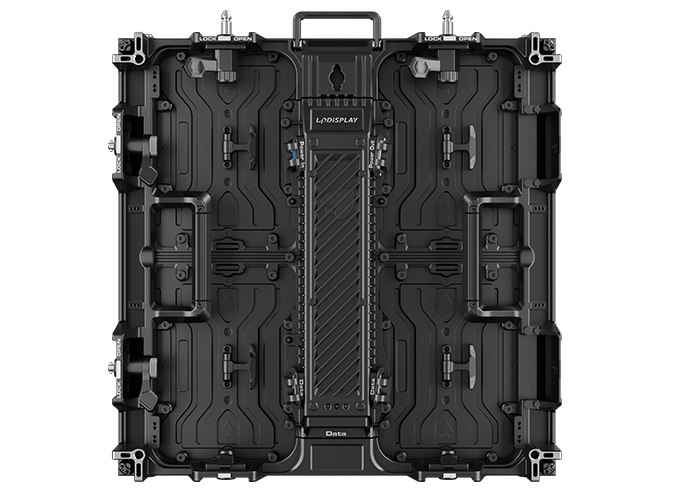

箱体配有护角设计，保护灯珠边缘在运输过程中不受损坏。

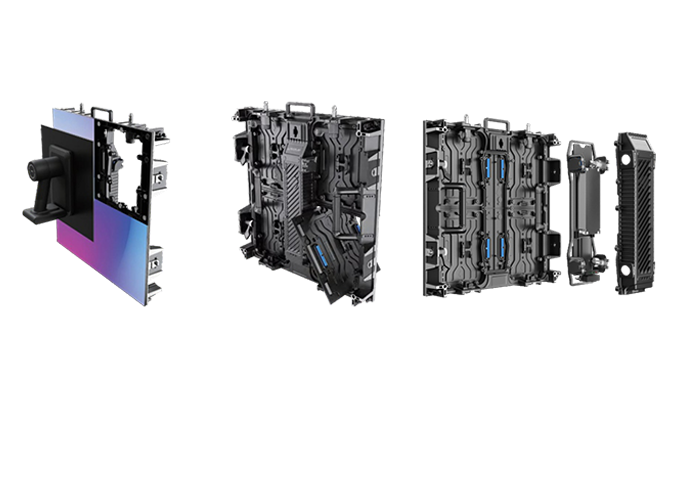

模组支持前后维护，电源盒支持后维护。

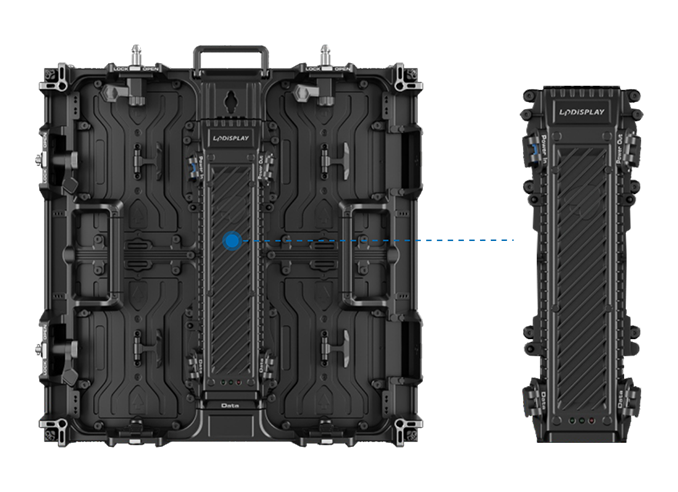

电源箱后盖散热板设计，有助于加快散热。

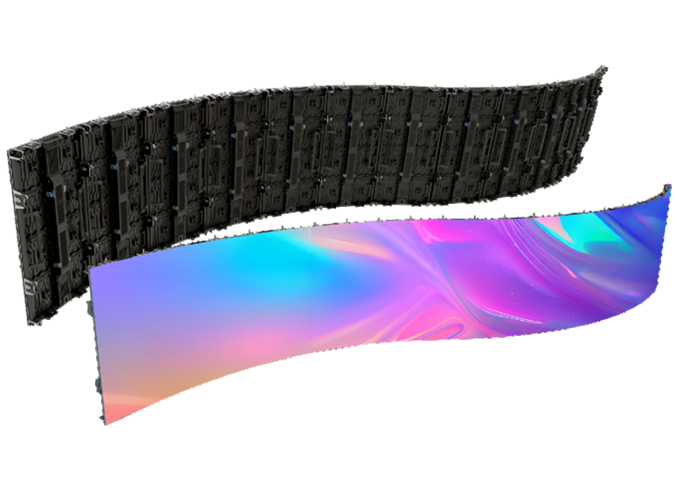

±5°弧形锁设计，支持拼接内弧和外弧。
支持拼接成90度直角立方体形状，内弧及外弧形状，500x1000mm与500x500mm箱体垂直可拼接。
| 型号 | LA19 | LA26 | LA29 | LA39 | LA290 | LA390 | LA480 | LA590 |
| 应用环境 | Indoor | Indoor | Indoor | Indoor | Outdoor | Outdoor | Outdoor | Outdoor |
| 像素配置 | SMD | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
| 像素间距(mm) | 1.95 | 2.61 | 2.97 | 3.91 | 2.9 | 3.91 | 4.81 | 5.9 |
| 箱体尺寸(mm)(WxHxD) | 500x500x68 | 500x500x68 |
500x500x68 500x1,000x68 |
500x500x68 500x1,000x68 |
500x500x72 500x1,000x72 |
500x500x72 500x1,000x72 |
500x500x72 500x1,000x72 |
500x500x72 500x1,000x72 |
| 箱体分辨率(WxH) | 256x256 | 192x192 |
168x168 168x336 |
128x128 128x256 |
168x168 168x336 |
128x128 128x256 |
104x104 104x208 |
84x84 84x168 |
| 箱体重量(kg/cabinet) | 6.9 | 6.9 | 6.9/11.5 | 6.9/11.5 | 7.7/12.8 | 7.7/12.8 | 7.7/12.8 | 7.7/12.8 |
| 刷新率(Hz) | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 |
| 灰度等级(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| 亮度(nits) | 800 | 1,000 | 1,000 | 1,200 | 4,000 | 4,500 | 4,500 | 5,000 |
| 最大功耗(W/㎡) | ≤450 | ≤500 | ≤500 | ≤500 | ≤500 | ≤600 | ≤600 | ≤600 |
| 平均功耗(W/㎡) | ≤150 | ≤170 | ≤170 | ≤170 | ≤170 | ≤200 | ≤200 | ≤200 |
| 观看视角（H/V） | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/140° | 160°/140° | 160°/140° | 160°/140° |
| 工作电压 | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| 使用寿命(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| 型号 | LA19 | LA26 | LA29 | LA39 | LA290 | LA390 | LA480 | LA590 |
| 应用环境 | Indoor | Indoor | Indoor | Indoor | Outdoor | Outdoor | Outdoor | Outdoor |
| 像素配置 | SMD | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
| 像素间距(mm) | 1.95 | 2.61 | 2.97 | 3.91 | 2.9 | 3.91 | 4.81 | 5.9 |
| 箱体尺寸(mm)(WxHxD) | 500x500x68 | 500x500x68 |
500x500x68 500x1,000x68 |
500x500x68 500x1,000x68 |
500x500x72 500x1,000x72 |
500x500x72 500x1,000x72 |
500x500x72 500x1,000x72 |
500x500x72 500x1,000x72 |
| 箱体分辨率(WxH) | 256x256 | 192x192 |
168x168 168x336 |
128x128 128x256 |
168x168 168x336 |
128x128 128x256 |
104x104 104x208 |
84x84 84x168 |
| 箱体重量(kg/cabinet) | 6.9 | 6.9 | 6.9/11.5 | 6.9/11.5 | 7.7/12.8 | 7.7/12.8 | 7.7/12.8 | 7.7/12.8 |
| 刷新率(Hz) | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 |
| 灰度等级(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| 亮度(nits) | 800 | 1,000 | 1,000 | 1,200 | 4,000 | 4,500 | 4,500 | 5,000 |
| 最大功耗(W/㎡) | ≤450 | ≤500 | ≤500 | ≤500 | ≤500 | ≤600 | ≤600 | ≤600 |
| 平均功耗(W/㎡) | ≤150 | ≤170 | ≤170 | ≤170 | ≤170 | ≤200 | ≤200 | ≤200 |
| 观看视角（H/V） | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/140° | 160°/140° | 160°/140° | 160°/140° |
| 工作电压 | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| 使用寿命(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
