FX系列
像素间距(mm)：1.25/1.56/1.86/1.95/2.5/2.6/2.9

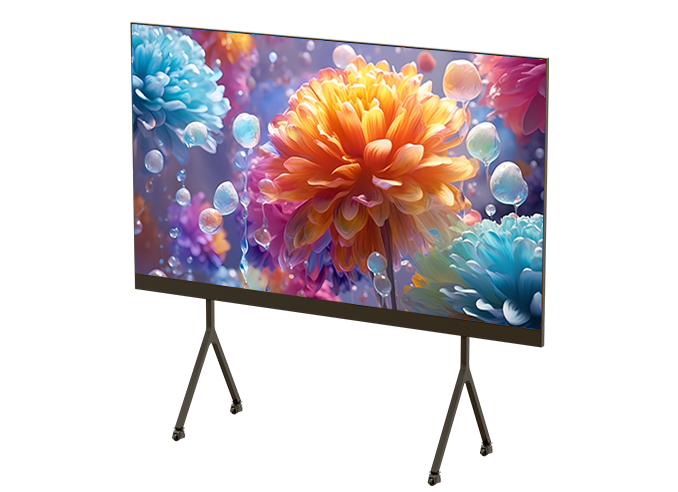

EVA PAD系列LED显示屏是我司针对室内会议市场开发的一款多功能智能LED显示屏。
像素间距：
0.625mm/0.75mm/0.78mm/0.93mm/1.25mm/1.5mm/1.56mm/1.875mm/2.5mm亮度：
1,000nits尺寸：
108"/ 130"/136"/ 163"/217"

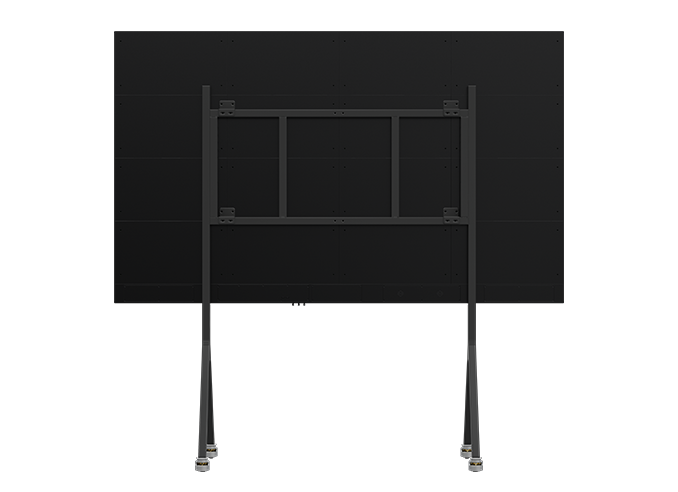

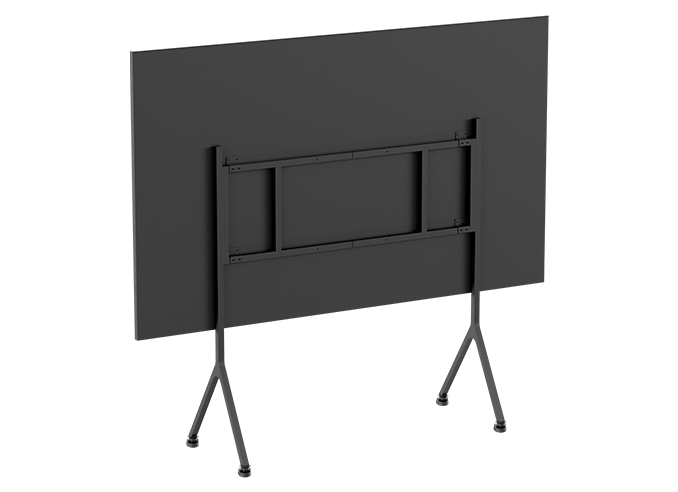

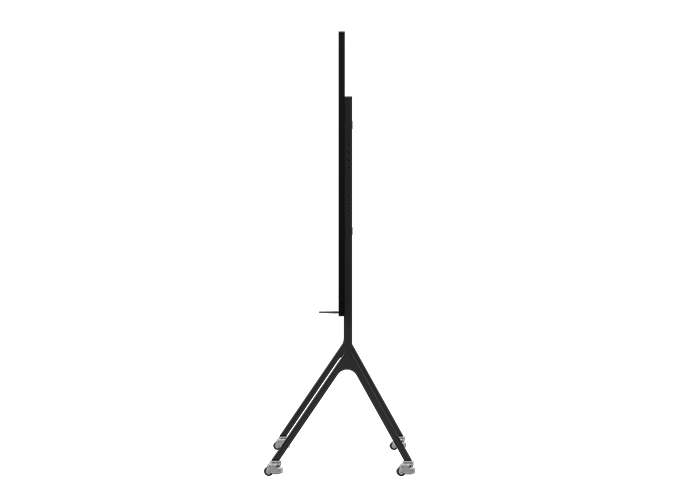

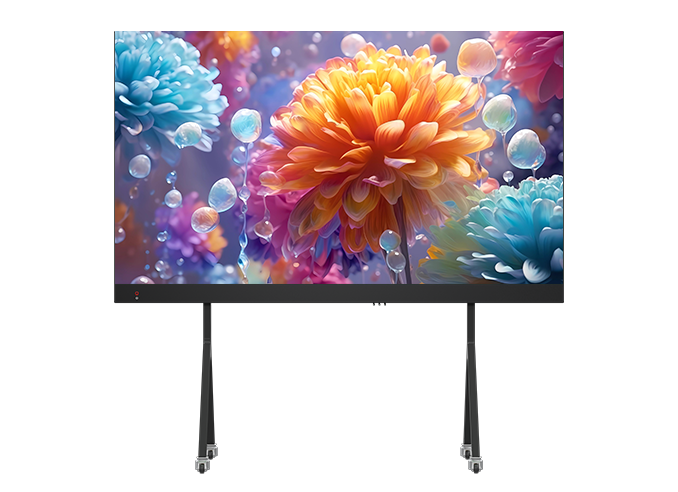

该产品提供多种安装选择，可带轮子和支架立式安装，也可以直接固定到墙上壁挂安装。
它可以扩大色彩范围，覆盖更广阔的色彩空间，从而产生更逼真生动的图像。

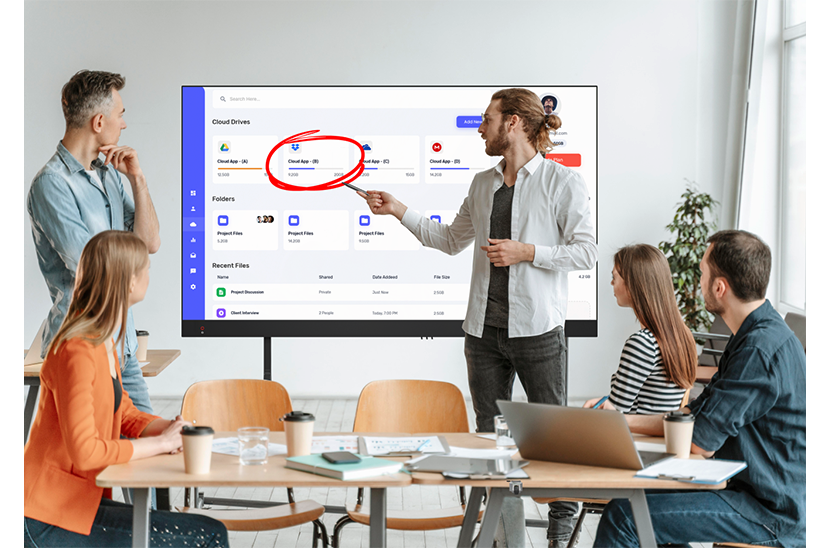

可选择触摸互动功能。

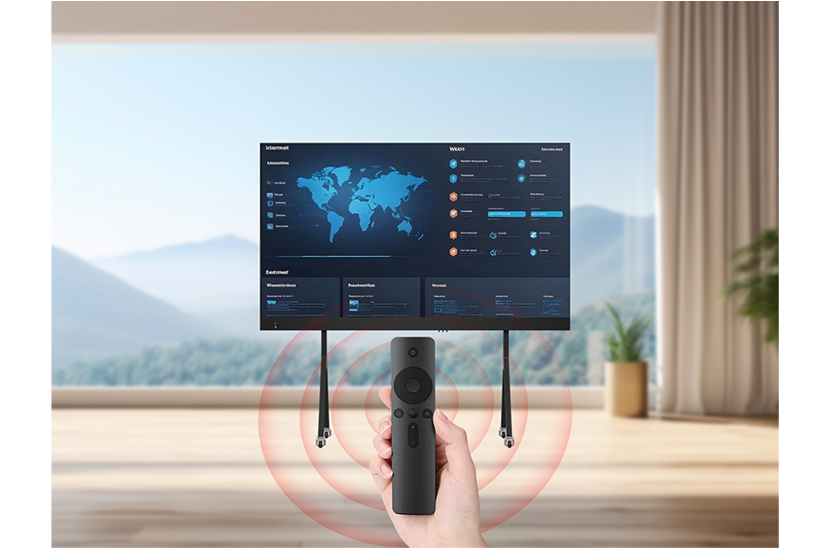

通过使用遥控器，用户可以很容易地调节音量、亮度和打开文件播放。

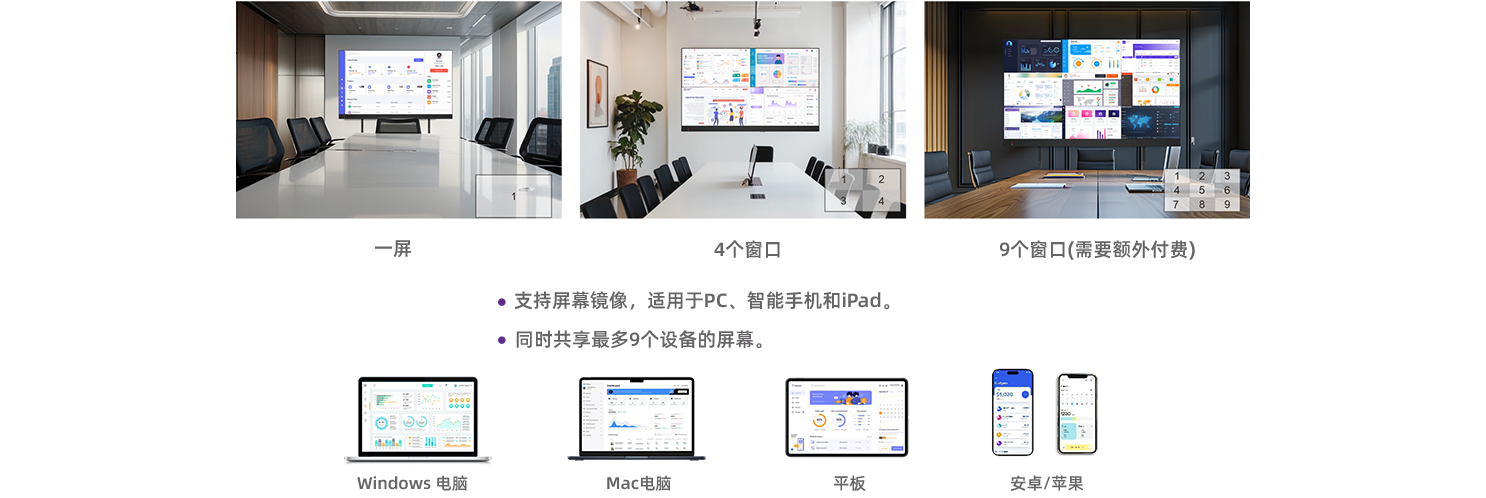

支持PC，智能手机和ipad的屏幕镜像，同时可共享多达9个设备的屏幕。
| 型号 | 108-2K | 130-2K | 136-2K | 163-2K | 217-2K | 108-4K | 130-4K | 136-4K | 163-4K | 217-4K |
| 像素配置 | COB/SMD | COB | COB/SMD | SMD | SMD | COB | COB | COB | COB | COB |
| 像素间距(mm) | 1.25 | 1.5 | 1.56 | 1.875 | 2.5 | 0.625 | 0.75 | 0.78 | 0.93 | 1.25 |
| 显示尺寸(mm)（WxH） | 2,400x1,350 | 2,880x1,620 | 3,000x1,687.5 | 3,600x2,025 | 4,800x2,700 | 2,400x1,350 | 2,880x1,620 | 3,000x1,687.5 | 3,600x2,025 | 4,800x2,700 |
| 分辨率（WxH） | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 | 3,840x2,160 | 3,840x2,160 | 3,840x2,160 | 3,840x2,160 | 3,840x2,160 |
| 总重量(kg) | 80 | 115 | 120 | 172 | 305 | 80 | 115 | 120 | 174 | 305 |
| 刷新率(Hz) | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 |
| 灰度等级(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| 亮度(nits) | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 |
| 最大功耗(W) | ≤1,500 | ≤2,100 | ≤2,300 | ≤3,200 | ≤5,000 | ≤1,620 | ≤2,300 | ≤2,500 | ≤3,650 | ≤5,830 |
| 平均功耗(W) | ≤500 | ≤700 | ≤760 | ≤1,100 | ≤1,750 | ≤540 | ≤700 | ≤850 | ≤1,460 | ≤2,330 |
| 色温(K) | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 |
| 工作电压 | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| 控制类型 | 遥控器/触控 | 遥控器/触控 | 遥控器/触控 | 遥控器/触控 | 遥控器/触控 | 遥控器/触控 | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel |
| 接口 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 |
| WIFI模式 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 |
| 使用寿命(小时) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| 型号 | 108-2K | 130-2K | 136-2K | 163-2K | 217-2K | 108-4K | 130-4K | 136-4K | 163-4K | 217-4K |
| 像素配置 | COB/SMD | COB | COB/SMD | SMD | SMD | COB | COB | COB | COB | COB |
| 像素间距(mm) | 1.25 | 1.5 | 1.56 | 1.875 | 2.5 | 0.625 | 0.75 | 0.78 | 0.93 | 1.25 |
| 显示尺寸(mm)（WxH） | 2,400x1,350 | 2,880x1,620 | 3,000x1,687.5 | 3,600x2,025 | 4,800x2,700 | 2,400x1,350 | 2,880x1,620 | 3,000x1,687.5 | 3,600x2,025 | 4,800x2,700 |
| 分辨率（WxH） | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 | 3,840x2,160 | 3,840x2,160 | 3,840x2,160 | 3,840x2,160 | 3,840x2,160 |
| 总重量(kg) | 80 | 115 | 120 | 172 | 305 | 80 | 115 | 120 | 174 | 305 |
| 刷新率(Hz) | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 |
| 灰度等级(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| 亮度(nits) | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 |
| 最大功耗(W) | ≤1,500 | ≤2,100 | ≤2,300 | ≤3,200 | ≤5,000 | ≤1,620 | ≤2,300 | ≤2,500 | ≤3,650 | ≤5,830 |
| 平均功耗(W) | ≤500 | ≤700 | ≤760 | ≤1,100 | ≤1,750 | ≤540 | ≤700 | ≤850 | ≤1,460 | ≤2,330 |
| 色温(K) | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 |
| 工作电压 | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| 控制类型 | 遥控器/触控 | 遥控器/触控 | 遥控器/触控 | 遥控器/触控 | 遥控器/触控 | 遥控器/触控 | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel |
| 接口 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 |
| WIFI模式 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 |
| 使用寿命(小时) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
