NOX系列-MIP
像素间距(mm)：1.25/1.5/1.87/2.5

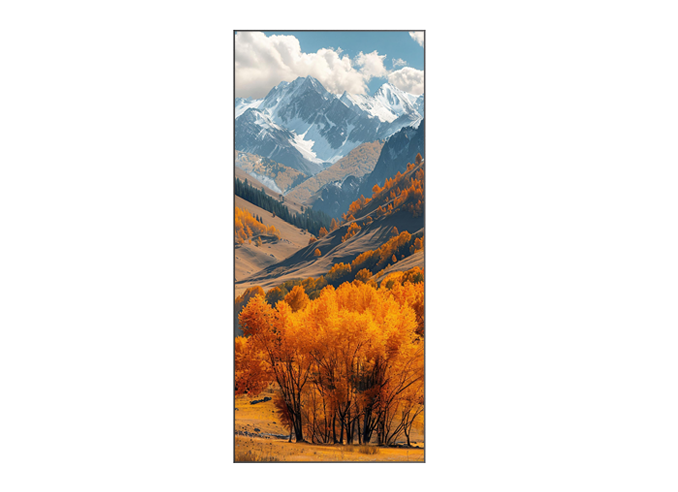

FLEX系列LED显示屏是一款可灵活快速拼接的小间距LED显示屏产品。
像素间距：
1.25mm/1.56mm/1.875mm/2.5mm亮度：
800~1,200nits箱体尺寸：
300x675x58mm

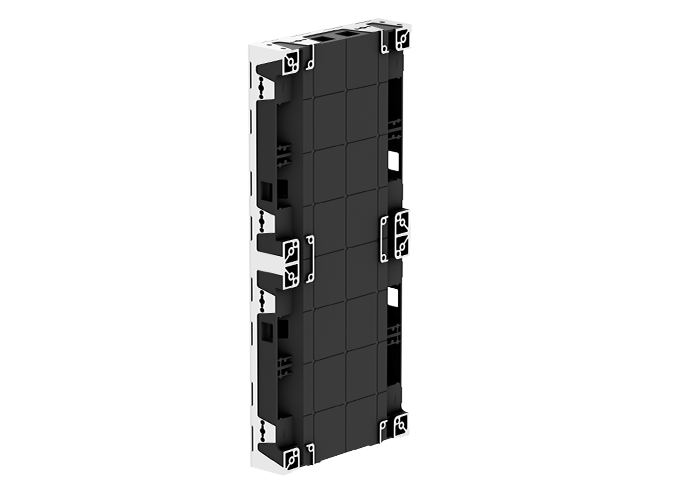

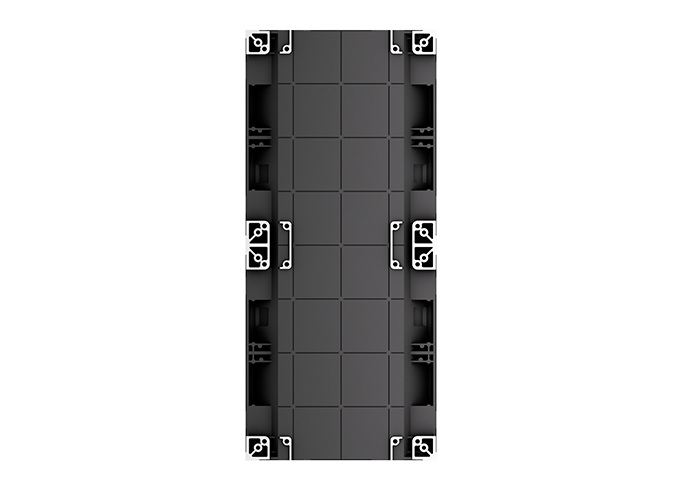

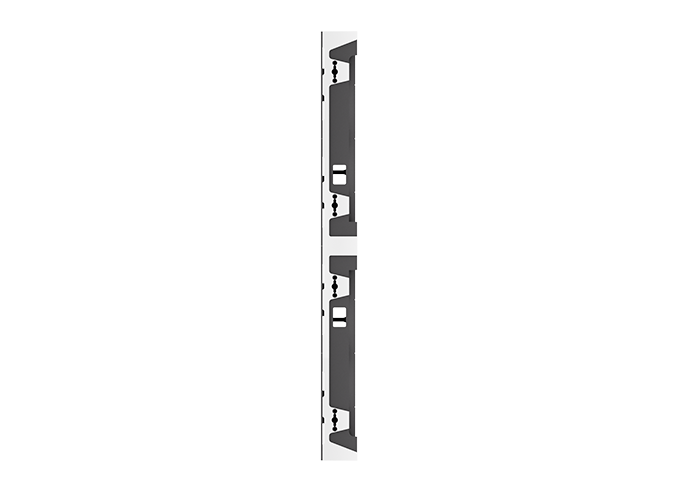

CNC精密加工，制作曲面压铸铝框架及连接板等，拼接弧形及曲面显示屏幕。
最小直径1145.9 mm，由12个箱体组成，组合拼接成圆柱屏效果。
表面采用G0B涂层处理，表面防水、防尘、防撞击、防静电。
| 型号 | 36A12 | 36A15 | 36A18 | 36A25 | 36A12 | 36A15 |
| 像素配置 | SMD | SMD | SMD | SMD | MIP | MIP |
| 像素间距(mm) | 1.25 | 1.56 | 1.87 | 2.5 | 1.25 | 1.56 |
| 箱体尺寸(mm)(WxHxD) | 300x675x58 | 300x675x58 | 300x675x58 | 300x675x58 | 300x675x58 | 300x675x58 |
| 箱体分辨率(WxH) | 240x540 | 192x432 | 160x360 | 120x270 | 240x540 | 192x432 |
| 箱体重量(kg/cabinet) | 6.8 | 6.8 | 6.8 | 6.8 | 6.8 | 6.8 |
| 刷新率(Hz) | ≤3840 | ≤3840 | ≤3840 | ≤3840 | ≤3840 | ≤3840 |
| 灰度等级(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| 亮度(nits) | 800 | 800 | 800 | 1,200 | 1,000 | 1,000 |
| 最大功耗(W/㎡) | ≤725 | ≤680 | ≤600 | ≤660 | ≤450 | ≤450 |
| 平均功耗(W/㎡) | ≤280 | ≤260 | ≤240 | ≤260 | ≤180 | ≤180 |
| 观看视角（H/V） | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| 工作电压 | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| 使用寿命(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| 型号 | 36A12 | 36A15 | 36A18 | 36A25 | 36A12 | 36A15 |
| 像素配置 | SMD | SMD | SMD | SMD | MIP | MIP |
| 像素间距(mm) | 1.25 | 1.56 | 1.87 | 2.5 | 1.25 | 1.56 |
| 箱体尺寸(mm)(WxHxD) | 300x675x58 | 300x675x58 | 300x675x58 | 300x675x58 | 300x675x58 | 300x675x58 |
| 箱体分辨率(WxH) | 240x540 | 192x432 | 160x360 | 120x270 | 240x540 | 192x432 |
| 箱体重量(kg/cabinet) | 6.8 | 6.8 | 6.8 | 6.8 | 6.8 | 6.8 |
| 刷新率(Hz) | ≤3840 | ≤3840 | ≤3840 | ≤3840 | ≤3840 | ≤3840 |
| 灰度等级(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| 亮度(nits) | 800 | 800 | 800 | 1,200 | 1,000 | 1,000 |
| 最大功耗(W/㎡) | ≤725 | ≤680 | ≤600 | ≤660 | ≤450 | ≤450 |
| 平均功耗(W/㎡) | ≤280 | ≤260 | ≤240 | ≤260 | ≤180 | ≤180 |
| 观看视角（H/V） | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| 工作电压 | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| 使用寿命(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
